Description

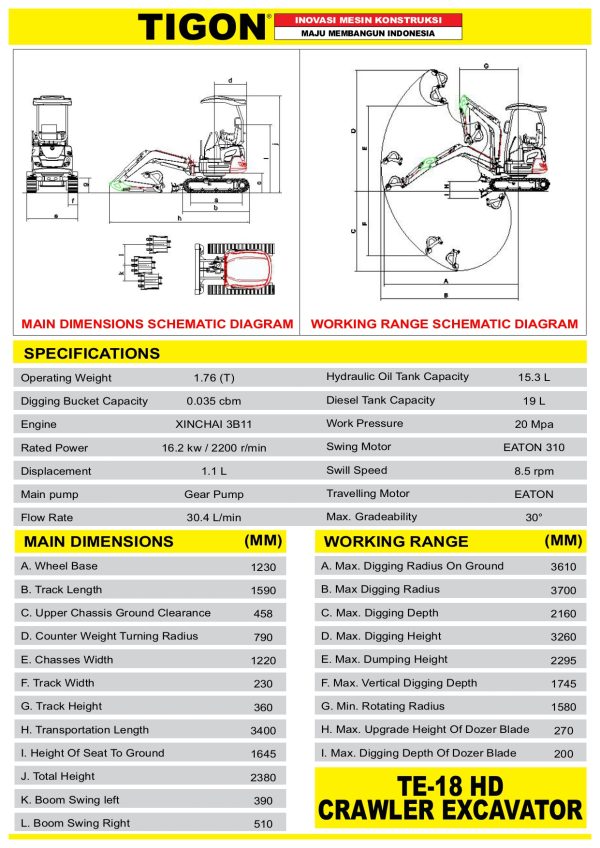

SPESIFIKASI :

Model TE-18 HD
Operating Weight 1.76 T
Digging Bucket Capacity 0.035 cbm
Engine XINCHAI 3B11
Rated Power 16.2 kw / 2200 r/min
Displacement 1.1 L
Main Pump Gear Pump
Flow Rated 30.4 L/min
Hydraulic Oil Tank Capacity NA15.3 LCHI
Diesel Tank Capacity 19 L
Work Pressure 20 Mpa
Swing Motor EATON 310
Swill Speed 8.5 rpm
Traveling Motor EATON
Max. Gradeability 30°
Overall Dimension 3400 x 1220 x 2380 mm
Additional information
Weight 1760 kg
Dimensions 340 × 122 × 238 cm
