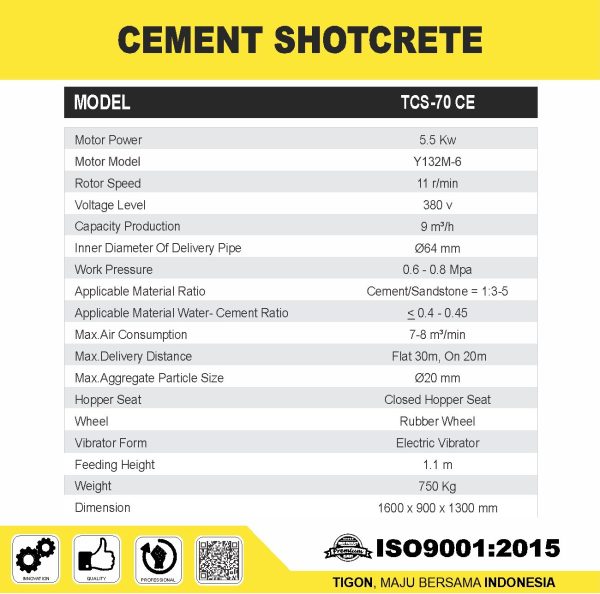

SPESIFIKASI :
| Model | TCS-70 CE |
|---|---|
| Motor Power | 5.5 kw |
| Motor Model | Y132M-6 |
| Rotor Speed | 11 r/min |
| Voltage Level | 380 v |
| Capacity Production | 9 m³/h |
| Inner Diameter Of Delivery Pipe | Ø 64 mm |
| Work Pressure | 0.6 – 0.8 Mpa |
| Applicable Material Ratio | Cement / Sandstone = 1:3-5 |
| Applicable Material Water-Cement Ratio | ≤ 0.4 – 0.45 |
| Max. Air Consumption | 7 – 8 m³/min |
| Max. Delivery Distance | Flat 30m, On 20m |
| Max. Aggregate Particle Size | Ø 20 mm |
| Hopper Seat | Closed Hopper |
| Wheel | Rubber Wheel |
| Vibrator Form | Electric Vibrator |
| Feeding Height | 1.1 m |
| Weight | 750 kg |
| Dimension | 1600 x 900 x 1300 mm |
