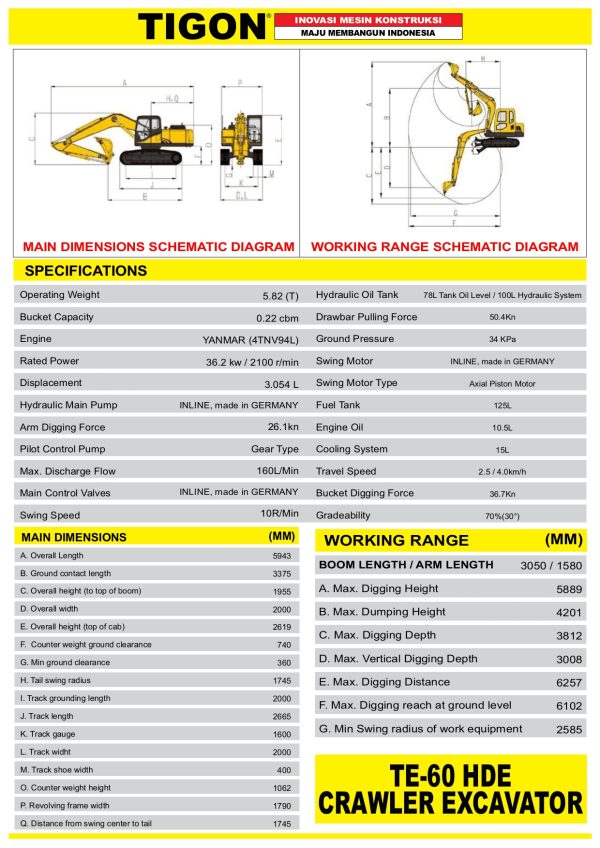

SPESIFIKASI :
| Model | TE-60 HDE |
|---|---|
| Operating Weight | 5.82 T |
| Bucket Capacity | 0.22 cbm |
| Engine | YANMAR (4TNV94L) |
| Rated Power | 36.2 kw / 2100 r/min |
| Displacement | 3.054 L |
| Hydraulic Main Pump | INLINE, made in GERMANY |
| Arm Digging Force | 26.1 kn |
| Pilot Control Pump | Gear Type |
| Max. Discharge Flow | 160 L/min |
| Main Control Valves | INLINE, made in GERMANY |
| Swing Speed | 10 r/min |
| Hydraulic Oil Tank | 78 L Tank Oil Level / 100 L Hydraulic System |
| Drawbar Pulling Force | 50.4 kn |
| Ground Pressure | 34 KPa |
| Swing Motor | INLINE, made in GERMANY |
| Swing Motor Type | Axial Piston Motor |
| Fuel Tank | 125 L |
| Engine Oil | 10.5 L |
| Cooling System | 15 L |
| Travel Speed | 2.5 /4.0 km/h |
| Bucket Digging Force | 36.7 kn |
| Gradeability | 70%(30°) |
| Overall Dimension | 5943 x 2000 x 1955 mm |
